Dunnage Engineering: Maximizing Density and Cost

Dunnage refers to materials and methods used to protect, brace, and fill voids around cargo and packaged goods to prevent damage and to optimize space utilization in containers and parcels.

What dunnage is and why it matters

Dunnage comprises any material, structure, or method used inside packaging, crates, pallets, containers, or vehicles to support, separate, brace, cushion, or restrict movement of goods during storage and transit. In modern 3PL fulfillment, dunnage engineering focuses not only on protection but on minimizing "dead space"—the unused cubic volume that increases dimensional weight (DIM) and shipping costs. Effective dunnage choices balance product protection, cost, and volumetric efficiency.

Core functions of dunnage

• Protection: absorb shock, vibration, and impacts to reduce damage and returns.
• Stabilization: block and brace items to prevent shifting in transit.
• Void fill: occupy empty space so items can be packed in smaller outer cartons.
• Unitization: enable multiple items to be treated as a single handling unit (e.g., pallet wrapping, corner boards).
• Compliance: meet carrier and regulatory requirements for safe transport.

Common dunnage materials and approaches

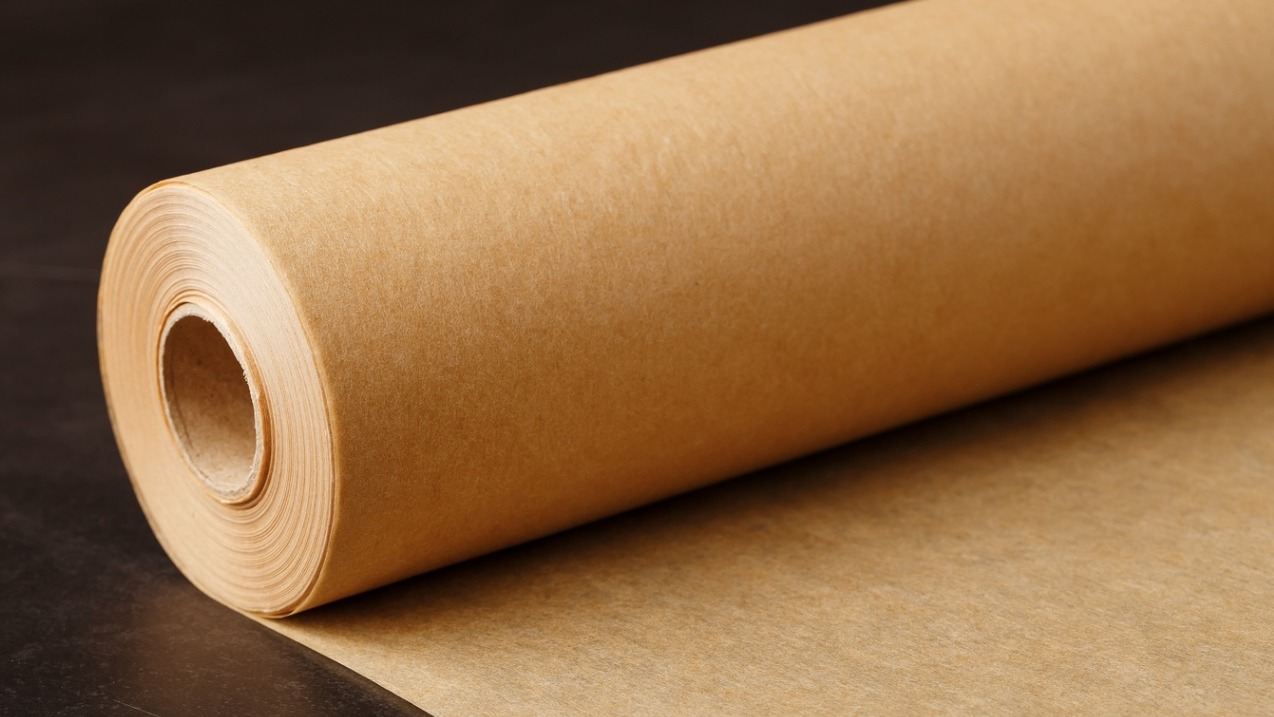

• Void fill: paper, kraft pads, crumple paper, air pillows, biodegradable chips—focus on low bulk while filling space.
• Inserts and cushions: molded pulp, expanded polystyrene (EPS), polyurethane foam, corrugated die-cut inserts—to cradle items snugly.
• Securing and bracing: strapping, stretch/shrink wrap, edge protectors, load bars, dunnage bags (inflatable), timber blocking.
• Unitization and containment: shrink film, pallet collars, banding, slip sheets.
• Reusables and returnable dunnage: pallets with fitted fixtures, reusable crates, foam-lined returnable totes—helpful for high-value, repeat shipments.

Dimensional weight and the volumetric cost driver

Carriers often bill by DIM weight when a package's volume implies a higher cost than its actual weight. DIM weight is calculated by multiplying length × width × height and dividing by a DIM divisor (different carriers and regions use different divisors). Example: a 20" × 12" × 8" box has a volume of 1,920 cubic inches. With a common U.S. divisor in the 139–166 range, the DIM weight will typically exceed a low actual weight, causing the shipper to be billed on DIM instead of actual pounds. Reducing the outer dimensions through right-sizing and minimizing internal voids directly lowers DIM weight and shipping expense.

How dunnage engineering reduces costs

• Right-sizing: redesigning internal supports so smaller outer cartons can be used, reducing billed DIM weight.
• Lower-volume protection: switching from bulky foam blocks to optimized molded inserts or paper-based solutions that provide equal protection at lower volume.
• Automation and templates: using software-guided pack instructions or automated box-making to ensure consistent minimal packaging for each SKU.
• Unitization: consolidating multiple small items into a single compact unit reduces per-item packaging overhead and improves trailer/cube utilization.

Best practices for beginners

1. Start with an audit: measure current average package dimensions, void space percentage, damage rates, and DIM billing instances.
2. Profile SKUs: segment products by fragility, shape, and typical order combinations to apply the right dunnage strategy per cohort.
3. Create packaging decision rules: develop a decision tree (e.g., when to use inserts vs. void fill vs. palletization) to standardize pack choices.
4. Test and iterate: pilot alternative dunnage materials or right-sized boxes for a subset of SKUs and compare damage, cost, and pack time.
5. Train packers and document: consistent application of dunnage methods is critical—use visual guides and quality checks.
6. Measure KPIs: track fill rate (percent of box volume used), DIM charge frequency, damage rate, pack time, and material cost per shipment.

Practical implementation steps

• Collect data: average box dimensions, weight, and damage incidents for a representative sample.
• Model cost trade-offs: compare material cost per package versus DIM savings; include damage risk costs.
• Select materials: choose dunnage that minimizes volume while meeting protection and sustainability goals.
• Prototype packaging: design inserts or die-cuts and trial with live orders.
• Integrate with systems: pack station software can suggest box sizes and dunnage based on order contents.
• Scale and monitor: roll out by SKU cohorts and continuously measure and tweak.

Common mistakes to avoid

• Overprotection: using overly bulky cushioning increases DIM charges even if damage falls marginally.
• Ignoring the carrier rules: not accounting for carrier-specific DIM divisors or minimum billable weights can defeat savings efforts.
• One-size-fits-all packing: failing to tailor dunnage to SKU groups wastes space and cost.
• Neglecting packer training: inconsistent application of dunnage methods undermines standardized results.
• Forgetting returns and reverse logistics: return packaging and reusability should be considered where returns are frequent.

Real-world examples

• E-commerce apparel: replacing bulky foam with folded kraft paper and using poly mailers for soft goods reduced average box dimensions, lowering DIM-based charges and improving pick/pack speed.
• Electronics fulfillment: custom molded pulp trays and snug inner cartons protected items while enabling a smaller outer box, reducing both damage and DIM charges.
• Multi-SKU parcel consolidation: combining several small items into a single, tightly packed box with internal separators reduced total shipped volume versus multiple small cartons.

Balancing sustainability and cost

Many shippers now prefer recyclable or compostable dunnage (molded pulp, paper-based void fill) that reduces environmental impact and often reduces volumetric footprint compared with bulky plastics. Consider life-cycle cost—material cost, shipping DIM impact, and disposal or return logistics—when selecting dunnage.

Key metrics to monitor

• Cube utilization: percent of container/trailer or box volume used.
• DIM charge incidence: percent of shipments billed on dimensional weight.
• Average pack volume per shipment and fill rate.
• Damage and return rates attributable to packaging failures.
• Material cost per shipment and labor time to pack.

Final guidance

Dunnage engineering is as much about reducing wasted cubic inches as it is about protecting goods. Start with data, experiment with lower-volume protective options, and standardize what works. Small reductions in average outer dimensions across thousands of shipments compound into substantial savings in DIM charges and improved vehicle utilization. For 3PLs and merchants alike, the optimal dunnage program balances protection, space efficiency, cost, pack speed, and sustainability.
